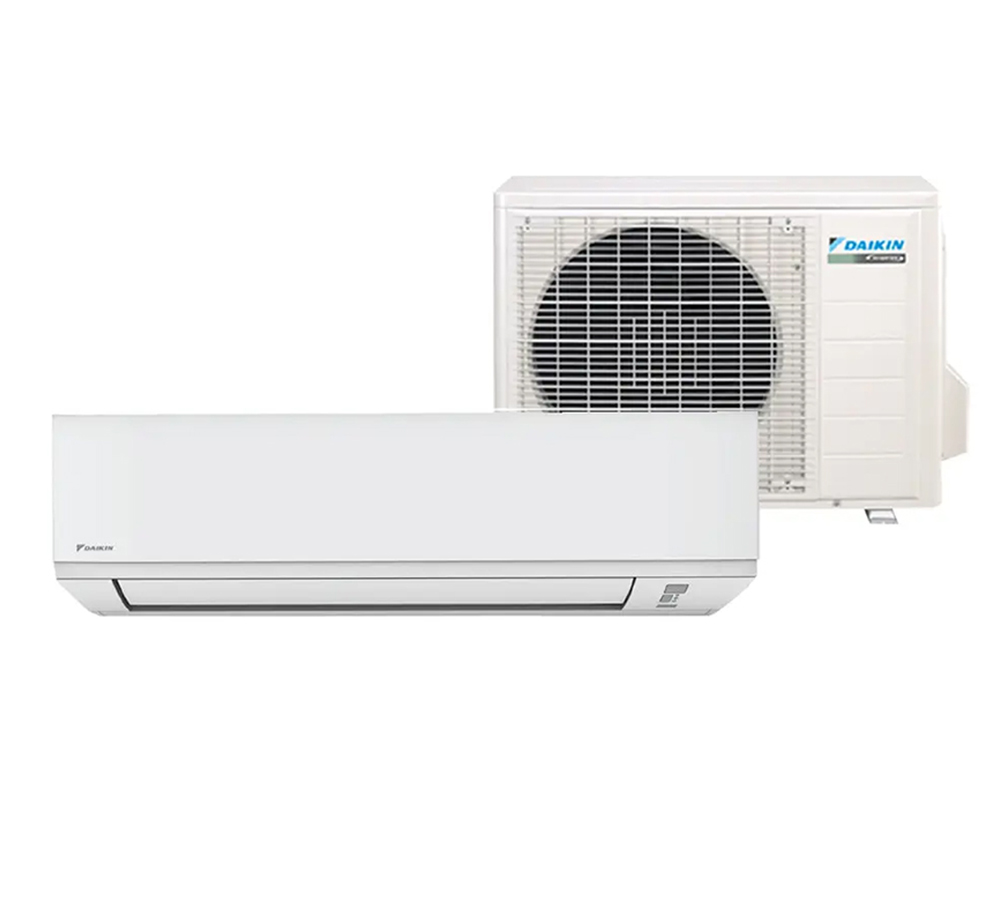

Model : FTKF25AV1
Capacity : Room Air Condition
Power supply(V/Ph/Hz) : 200-240V/1ph/50Hz (Power from Outdoor)
Cooling Capacity Rated (Min-Max) Btu/h : 9,000 (3,400-9,200
Cooling Capacity Rated (Min-Max) kW : 2.64 (1.00-2.70)
Power consumption (W) : 860
Running current(A) : 3.93
Indoor Air Flow Rate (H)cfm : 340
Indoor Sound pressure level (H/M/L/Q)dB(A) : 39/33/26/21
Indoor Dimension (H x W x D)mm : 280 x 730 x 213
Indoor Weight :  8.5Kg
Outdoor Compressor : Hermetically sealed swing type
Outdoor Sound pressure level (A) : 48
Outdoor Dimension (H x W x D)mm : 418 x 695 x 244
Outdoor Weight : 19Kg
Piping connections (Gas/Liquid)mm : ø9.5 / ø6.4
Maximum piping length : 20m
Maximum piping elevation : 15m
